Tramp Oil Belt Skimmer
Couldn't load pickup availability
A Reputation Built on Quality and Service Since 1994.

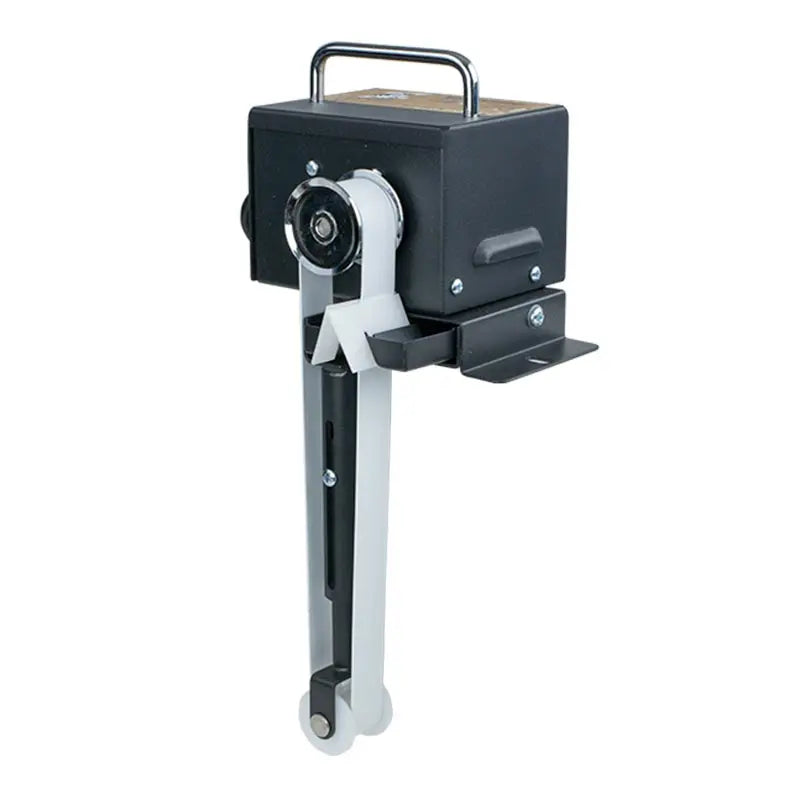

Experience Unmatched Skimming Power with the Zebra Tramp Oil Belt Skimmer
Does your machine shop need a robust, dependable solution for tramp oil skimming that also offers easy vertical access? The Zebra Tramp Oil Belt Skimmer is the answer. It is specifically engineered for simplicity and durability. What’s more, all our belt skimmers are proudly manufactured right here in the United States at our Solon, OH facility and is available with our Lifetime Warranty.
Your purchase includes:
- 1 Belt skimmer unit with a 28 rpm continuous duty 115v motor (unless otherwise noted)
- 1 Oil discharge hose
- 1 poly belt

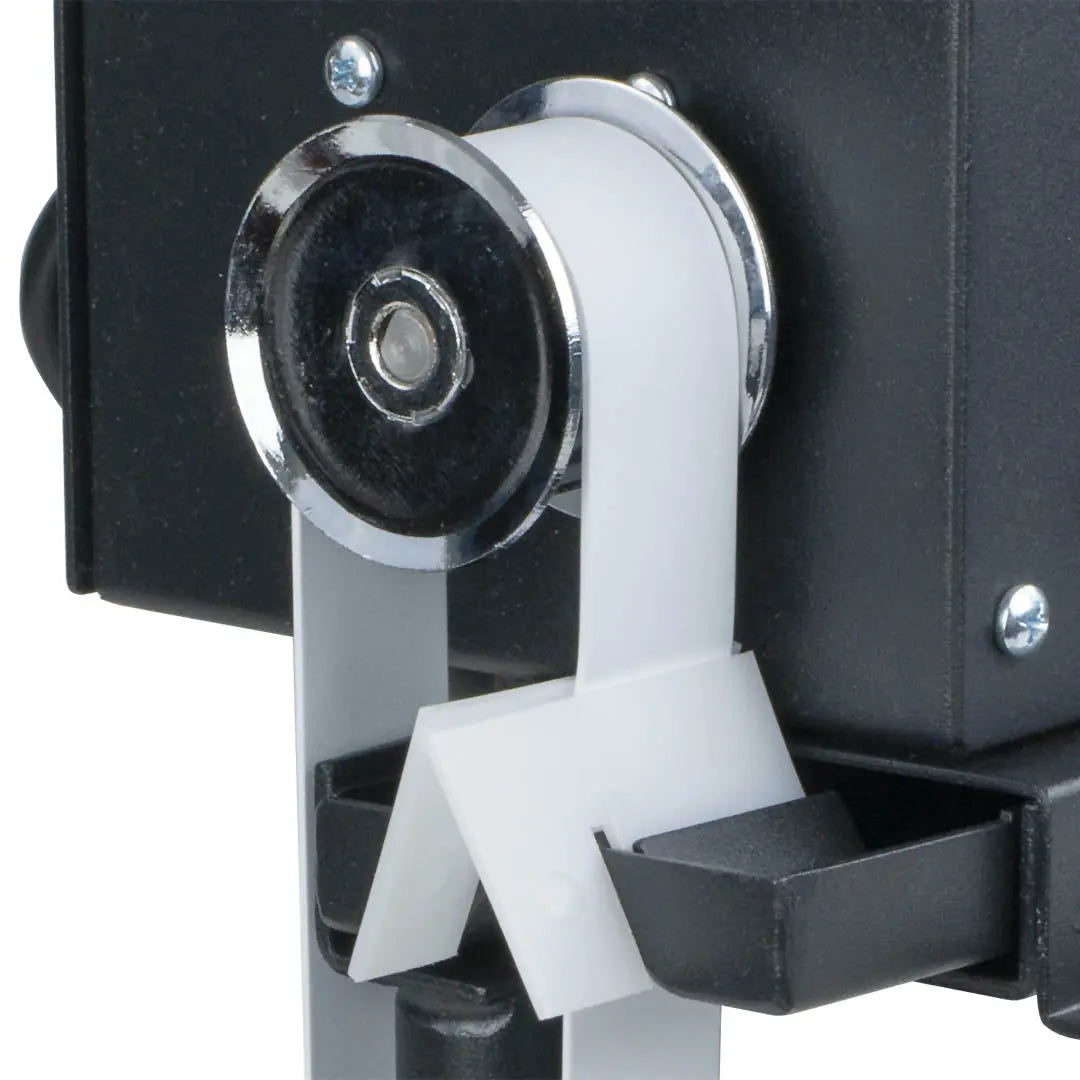

- 1 set of wipers
Part Number: BPF1-* (where * represents the belt reach in inches; standard sizes are 08″, 12″, 18″, 24″. Any belt skimmer over 24" in length is considered a long reach unit.
How to determine the optimal reach? Click to learn how to determine reach for a belt skimmer. Interested in a version with a stainless-steel belt? see our recommended products below.
To get a model compatible with 220VAC (200-240VAC), 50/60 Hz, simply add an “E” to the end of the part number. A 24 VDC version with a brushed motor is also available (13.8 rpm, 24VDC, .31 amps, continuous duty motor). Please call 888-249-4855 or use the quote button for pricing info. Please note custom builds can take up to 10 business days to ship.
Product Specifications:
|
Skimmer Type: |
Belt Skimmer |
|
Reach: |
8" - 132" |
| Motor Speed: | 28 rpm |
| Motor Current: | 0.4 A running, 0.54 A locked rotor (115 V). 240 V export models: 0.24–0.26 A running, 0.30 A locked rotor. 24 VDC models: 0.11–0.69 A. |
| Motor Power: | 21–34 W (115 V); 23–38 W (240 V); shaded-pole, impedance protected, continuous duty |
|
Belt Material: |
Polyurethane |
| Manufactured Origin: | USA |
| Standard Belt Lengths: | 8" to 24" |
| Long Reach Versions: | 36" to 180" |

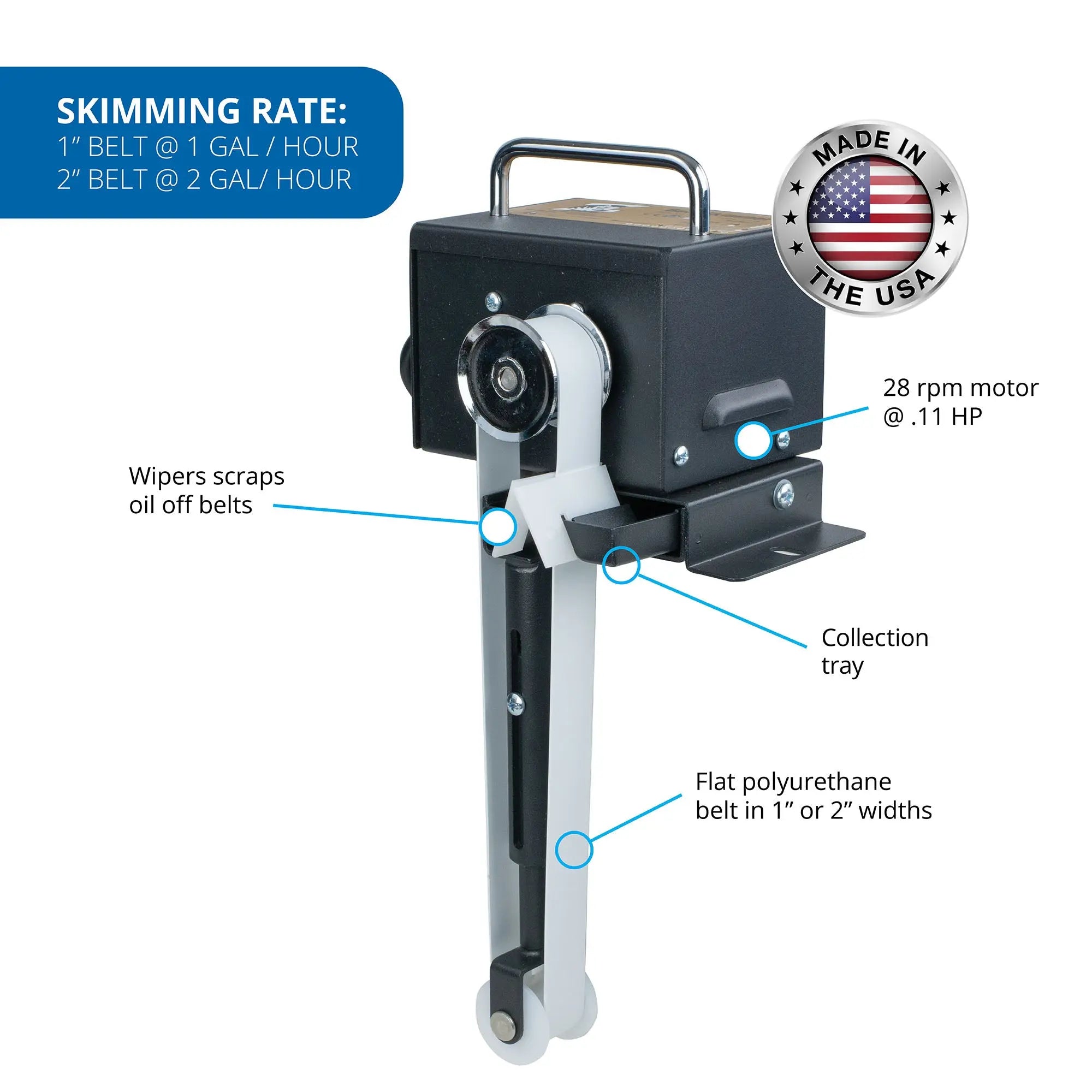

| Skimming Capacity: | 1" Belt @ 1 Gal / Hour. 2" Belt @ 2 Gal/ Hour |
| Motor Options: |
USA - 115-120 VAC or 24 VDC Brushed |
| Max Operating Temperature: | 26ºC / 80ºF |
| Belt Width: | 1" or 2" |
| Frequency / Voltage: | 60 Hz / 120 VAC |
| Minimum Sump Space: | 2" x 2" Opening |

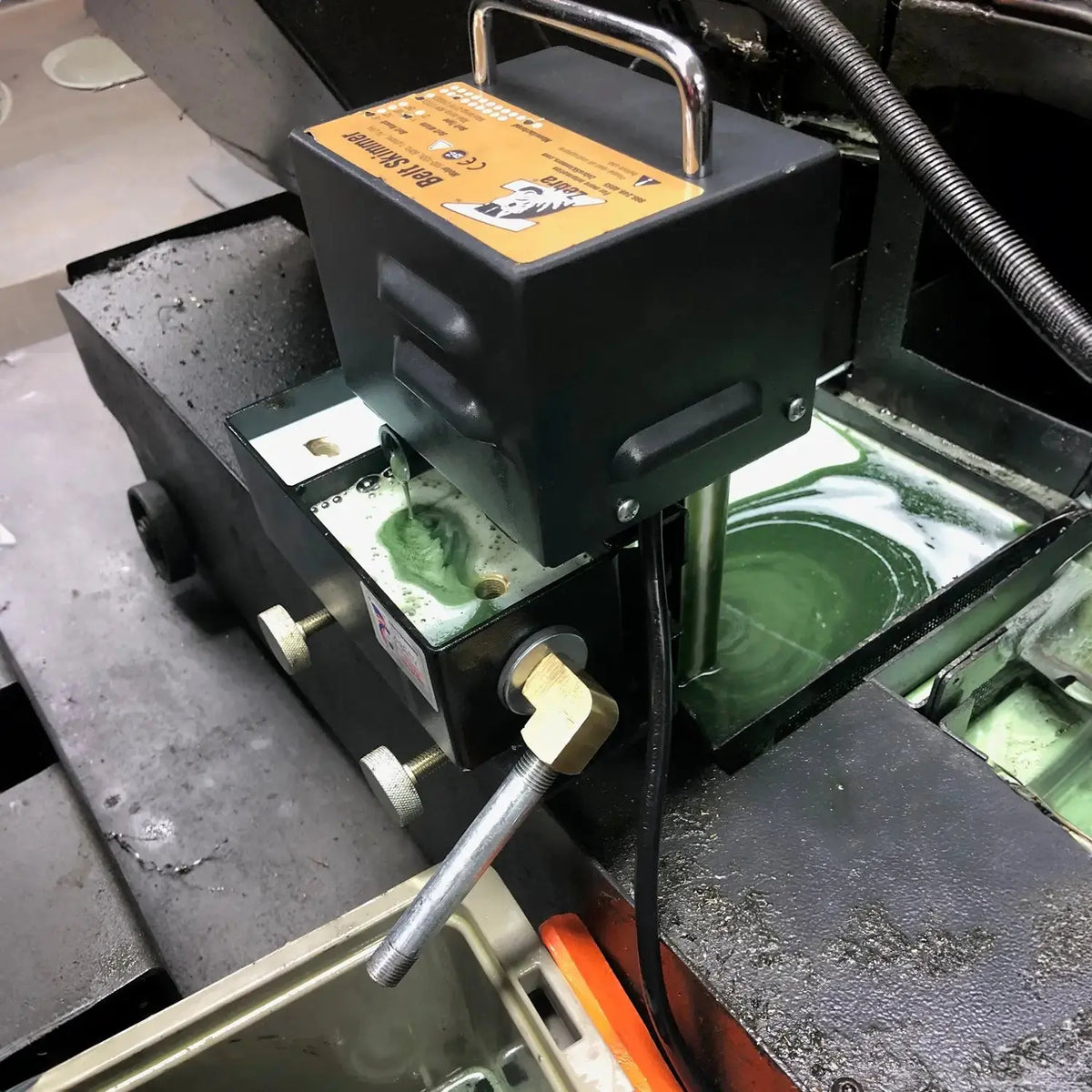

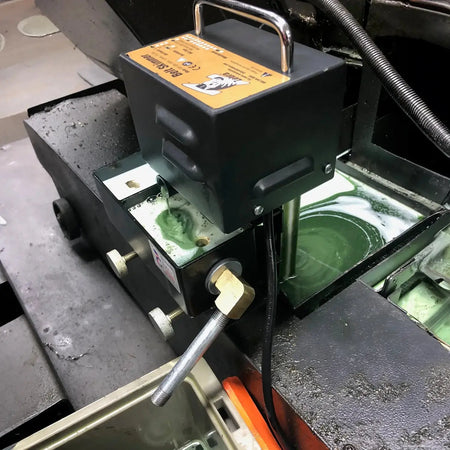

| Mounting Accessories: | LockJaw™ or Diverter™ |
Warranty: Enjoy a lifetime end-user warranty on the dual wiper set (1 set per 12-month period), and 90-days warranty on polyurethane belts.
Product Videos:
Our belt skimmers are also available in 24 VDC versions by special request. These models can be directly powered and controlled by the backplane of your machining center. Longer reach and wider belt skimmers are available, please contact us for a quote.
Belt Skimmer Replacement Belts Standard replacement belts are available for ordering below. For more expansive replacement belt list please Download our replacement belts sheet for part numbers or contact us today for a quote.
Will it fit, which one, and what does it cost?
Everything a shop needs to pick the right unit and order it today.
Will it fit?
- Belt width: 1 in, 2 in
- Power: 60 Hz / 120 V
- Removal rate: 1" Belt @ 1 Gal / Hour. 2" Belt @ 2 Gal/ Hour
- Max fluid temperature: 26ºC / 80ºF
- Weight: 11 lb
- Opening needed: the belt width plus about half an inch each side
- Mounting: two screws or a magnetic base on a flat surface above the sump; the motor sits outside the fluid
- Fluid: water-soluble coolant up to 80 F (26 C); for hotter or harsher fluids ask about the outboard-bearing version
- Removal rate: 1 in belt about 1 gallon per hour, 2 in belt about 2 gallons per hour
- Motor: 28 rpm gearmotor, 60 Hz 120 V standard; 220 V and 24 VDC versions listed
- Reach is the belt length below the mounting surface, not the tank depth
Which model?
| Your situation | Pick | Price |
|---|---|---|
| Sump within 8 in of the mounting point, light oil load | BPF1-08 (1 in x 8 in belt) | $422 |
| Same, 220 V shop power | BPF1-08E | $422 |
| Sump 9 to 12 in down | BPF1-12 (1 in x 12 in belt) | $434 |
| Sump 13 to 18 in down | BPF1-18 (1 in x 18 in belt) | $446 |
| Heavy oil load, or a sump over 100 gallons: 2 in belt doubles the removal rate | BPF2 models (2 in belt) | ask |
| Machine-powered 24 VDC control, no wall plug | BPF1-xx.24 VDC | from $444 |
Price, delivery, warranty
- Delivery: In stock: 1 in belt models ship in 1 business day from Ohio; 2 in belt models in 5
- Warranty: Lifetime Warranty on the unit. Belts, tubes and wipers are wear parts.
- Made in: Cleveland, Ohio, USA
- Buying more than four? Ask for volume pricing.
Manuals, parts and drawings
🔧 Replacement parts for this unitWear parts: Flat Polyurethane Skimmer Replacement Belt · Wiper Set for Belt Skimmers · Stainless Steel Replacement Belts · Coolant Diverter · Replacement Motor for Belt Skimmers · Lockjaw Mount · Cogged Belts · Belt Skimmer Foot Assembly · Belt Skimmer Drive Pulley
Questions shops ask before they order
Belt or tube skimmer?
Belt when the sump has an open top or a slot and the oil load is heavy. Tube (Sidewinder) when the only access is a small hole or the tank is deep.
How long does a belt last?
The polyurethane belt is a wear part; life depends on oil load and runs from months to years. Replacement belts are stocked. The skimmer carries our Lifetime Warranty.
Can it run all the time?
Yes. It is designed to run continuously; most shops leave it on.
Does it remove the coolant too?
Very little. The belt picks up what floats. Pair it with a coalescer if you want the last of the emulsified oil out.
